The Atlas of Agent Design Patterns Part 4 | From Single-Path Reasoning to Trees, Graphs, MCTS, and LATS

Part 3 examined how an agent decides what to do next:

follow fixed logic
react to the latest observation
create an explicit plan
revise the remaining plan
decompose a goal hierarchically

This article addresses a different problem:

When several candidate solutions or action sequences exist, how should the system explore them, compare them, and decide when to stop?

Some tasks need almost no search:

translate a sentence
extract fixed fields
call a known calculator
answer from one authoritative record
transform data into a defined schema

Other tasks contain meaningful alternatives:

a bug has several plausible root causes
an architecture has several defensible designs
a browser task has several action sequences
a plan contains competing decompositions
a mathematical problem admits several derivations
a report can be organised around different analytical frames

Committing to the first plausible path is cheap. It is also fragile when early choices strongly affect the outcome.

A search-capable system may:

generate several candidate states or actions
evaluate candidates
preserve promising branches
prune weak or invalid branches
backtrack when a branch fails
merge complementary intermediate results
use external feedback to update its search
stop when quality, risk, and budget conditions are satisfied

The difficult part is not producing more text. It is maintaining a trustworthy search process.

Reasoning, planning, search, and evaluation are different layers

These terms often appear together, but they answer different questions.

Reasoning

Reasoning derives a conclusion from the information currently available.

All enterprise plans support SSO
Plan X is an enterprise plan
Therefore, Plan X supports SSO

Planning

Planning selects tasks or actions that may lead from the current state to a goal.

Collect official evidence
  -> compare capabilities
  -> verify constraints
  -> produce recommendation

Search

Search manages alternatives:

which state to expand
which candidate to keep
which branch to prune
whether to backtrack
whether to merge results
when to stop

Evaluation

Evaluation estimates whether a state, action, or completed solution is valid, useful, safe, or preferable.

A single system may use all four:

Planner defines the work
  -> Search controller explores alternatives
  -> Executor performs actions
  -> Evaluator scores results
  -> Verifier accepts the final outcome

The labels are not interchangeable. A planner may produce one plan without searching alternatives. A search controller may explore several candidate plans. A verifier may reject all of them.

The five components of a search system

Before comparing named methods, it helps to describe the machinery they need.

Candidate generator

Produces possible:

answers
intermediate states
next actions
plans
code patches
queries
decompositions

State representation

Records what each candidate means.

A useful state may include:

Goal progress
Known facts
Unresolved requirements
Actions already taken
Evidence and provenance
Cost used
Policy status
Environment state

If the state is only an unstructured conversation transcript, equivalent branches become difficult to detect and compare.

Evaluator

Scores or classifies a candidate using some combination of:

hard constraints
executable tests
factual evidence
progress toward the goal
risk
cost
preference
maintainability
policy compliance

Search controller

Decides:

which candidate to expand next
how many children to generate
which branches survive
when to prune
when to backtrack
whether to merge
how exploration and exploitation are balanced

Stopping rule

Ends search when:

an accepted solution is found
quality exceeds a threshold
no feasible candidates remain
the budget is exhausted
the maximum depth or node count is reached
improvement has stalled
an irreversible action requires approval
the task is blocked or unsupported

Without an evaluator, multiple paths are only multiple drafts. Without a stopping rule, the search space becomes a very expensive shrubbery.

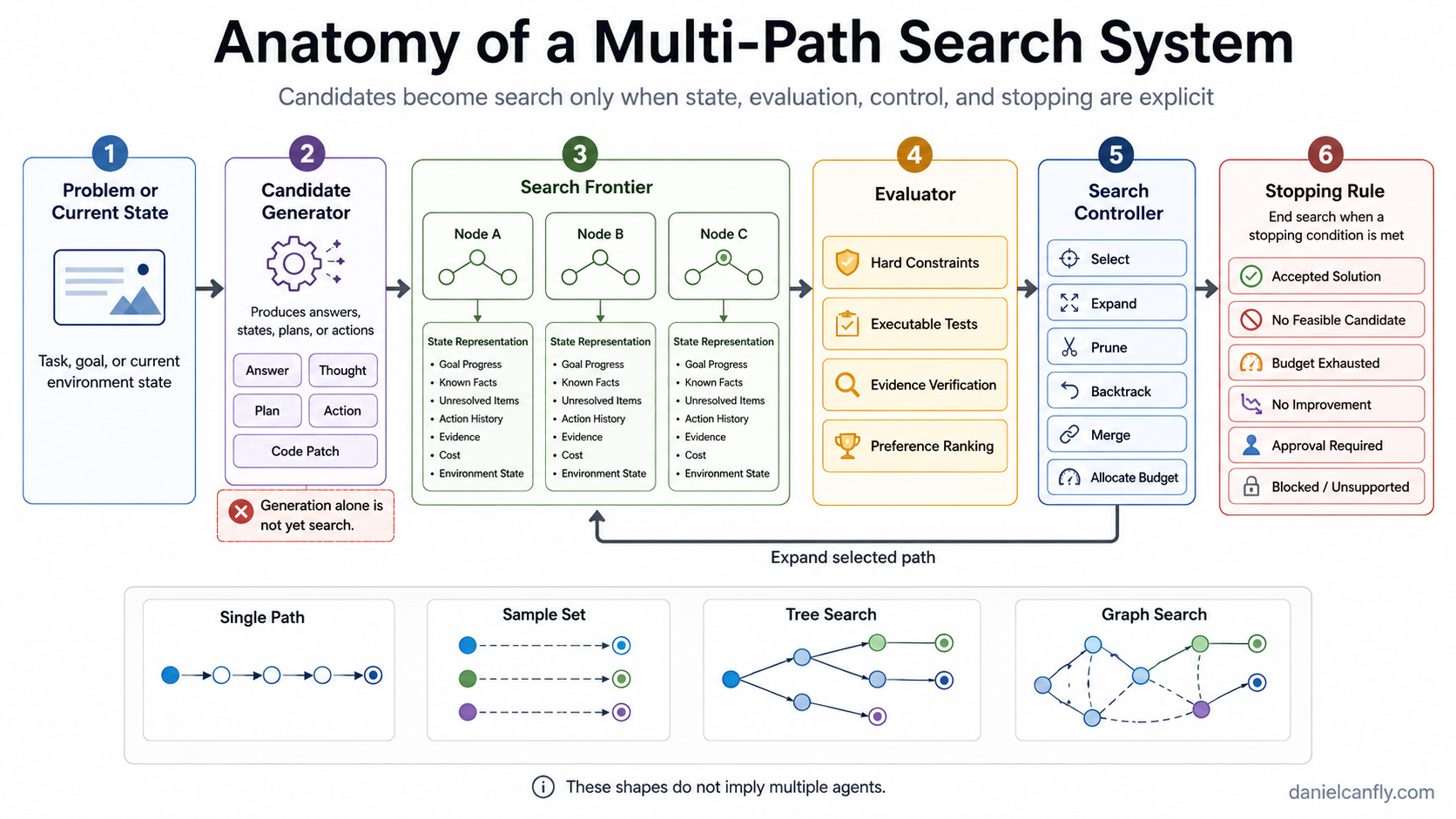

Figure 4-1 — Anatomy of a Multi-Path Search System

Figure 4-1 ｜ Anatomy of a Multi-Path Search System
The loop starts from a Problem or Current State, then runs through a Candidate Generator, a Search Frontier, an Evaluator and a Stopping Rule, with Backtrack and Merge woven in along the way, and finally returns an Accepted Solution or marks the task as Blocked. Each step in a search depends on the result of the previous one; it is not a flat chain.

Single-path reasoning and Chain-of-Thought

A single-path system preserves one main trajectory:

Problem
  -> Intermediate state
  -> Intermediate state
  -> Answer

This is often the correct baseline.

When one path is enough

the task is simple
latency matters
the environment gives a strong external verifier
exploring alternatives adds little value
the cost of a wrong first choice is low

For example, a system may generate one SQL query and then rely on:

a read-only connection
a parser
execution
result checks
query limits

Reliability comes from the verifier and execution boundary, not from generating five SQL queries.

Chain-of-Thought is not a search tree

Chain-of-Thought prompting encourages a model to produce intermediate reasoning steps before an answer. The original method demonstrated that such prompting can improve performance on multi-step reasoning tasks.

Its basic shape remains a chain:

Prompt
  -> intermediate reasoning
  -> intermediate reasoning
  -> answer

By itself, Chain-of-Thought does not provide:

multiple persistent candidates
a search frontier
branch scoring
pruning
backtracking
state merging
environment feedback

Therefore:

Chain-of-Thought may make one path more explicit, but it does not by itself create a multi-path search system.

In production, auditability should focus on structured, observable artefacts:

actions taken
tools used
evidence consulted
conditions checked
state transitions
verifier results
accepted and rejected candidates

A system does not need to expose or store unrestricted private reasoning text to be traceable.

Self-consistency: sample several paths and aggregate the answer

Self-consistency is a decoding strategy for Chain-of-Thought-style reasoning. Instead of taking one greedy path, it samples a diverse set of reasoning paths and selects the most consistent final answer.

Path A -> 42
Path B -> 42
Path C -> 39
Path D -> 42
Path E -> 41

Aggregate -> 42

Best fit

Self-consistency works best when:

the task has a relatively well-defined answer
equivalent answers can be normalised
different paths may reach the same result
sampling variance is a meaningful source of error

Typical examples include:

arithmetic reasoning
multiple choice
short-answer reasoning
classification
fixed-scale decisions

What it does not do

Self-consistency normally compares completed answers. It does not maintain a frontier of intermediate states or deliberately expand one branch instead of another.

It is therefore better described as:

sample-and-aggregate, not tree search.

Agreement is not evidence

Several paths may share:

the same false premise
the same outdated source
the same model bias
the same prompt-induced shortcut

Agreement can reduce incidental decoding variance. It does not replace factual verification, tests, or source checks.

Production controls

sample count
sampling diversity
answer normalisation
semantic grouping
agreement threshold
tie handling
abstention
cost budget
verifier fallback

Example:

Agreement >= threshold
  -> verify and accept

Agreement below threshold
  -> abstain, collect evidence, or use another evaluator

Generate-and-Rank: generate complete candidates, then score them

Generate-and-Rank is a general engineering pattern rather than one single canonical algorithm.

Problem
  -> Candidate generator
       -> A
       -> B
       -> C
       -> D
  -> hard validation
  -> external evaluation
  -> ranking
  -> select, combine, or abstain

It fits cases where several complete alternatives may all be reasonable:

architecture options
query rewrites
code patches
SQL candidates
plans
product decisions
answer drafts
tool choices

Self-consistency versus Generate-and-Rank

Dimension	Self-consistency	Generate-and-Rank
Aggregation basis	Agreement among answers	Explicit evaluation criteria
Best fit	One normalisable answer	Several plausible alternatives
Intermediate search	No	Usually no
Evaluator	Answer aggregator	Ranker or external test
Main risk	Shared error wins the vote	Weak ranker selects the wrong candidate

Layer the evaluator

A strong ranking pipeline should reject invalid candidates before comparing preferences.

Recommended order:

Hard constraints
  -> executable tests
  -> evidence verification
  -> quality and preference ranking

Examples:

Hard constraints

valid schema
required fields present
permitted tools only
read-only SQL
budget respected

Executable tests

code compiles
unit tests pass
SQL executes
browser state matches the goal
constraints are satisfiable

Evidence verification

claims have sources
citations support the claim
dates and versions are compatible
required evidence is not missing

Preference ranking

maintainability
readability
strategic fit
user preference
long-term cost

A candidate that fails a hard test should not win because it sounds polished.

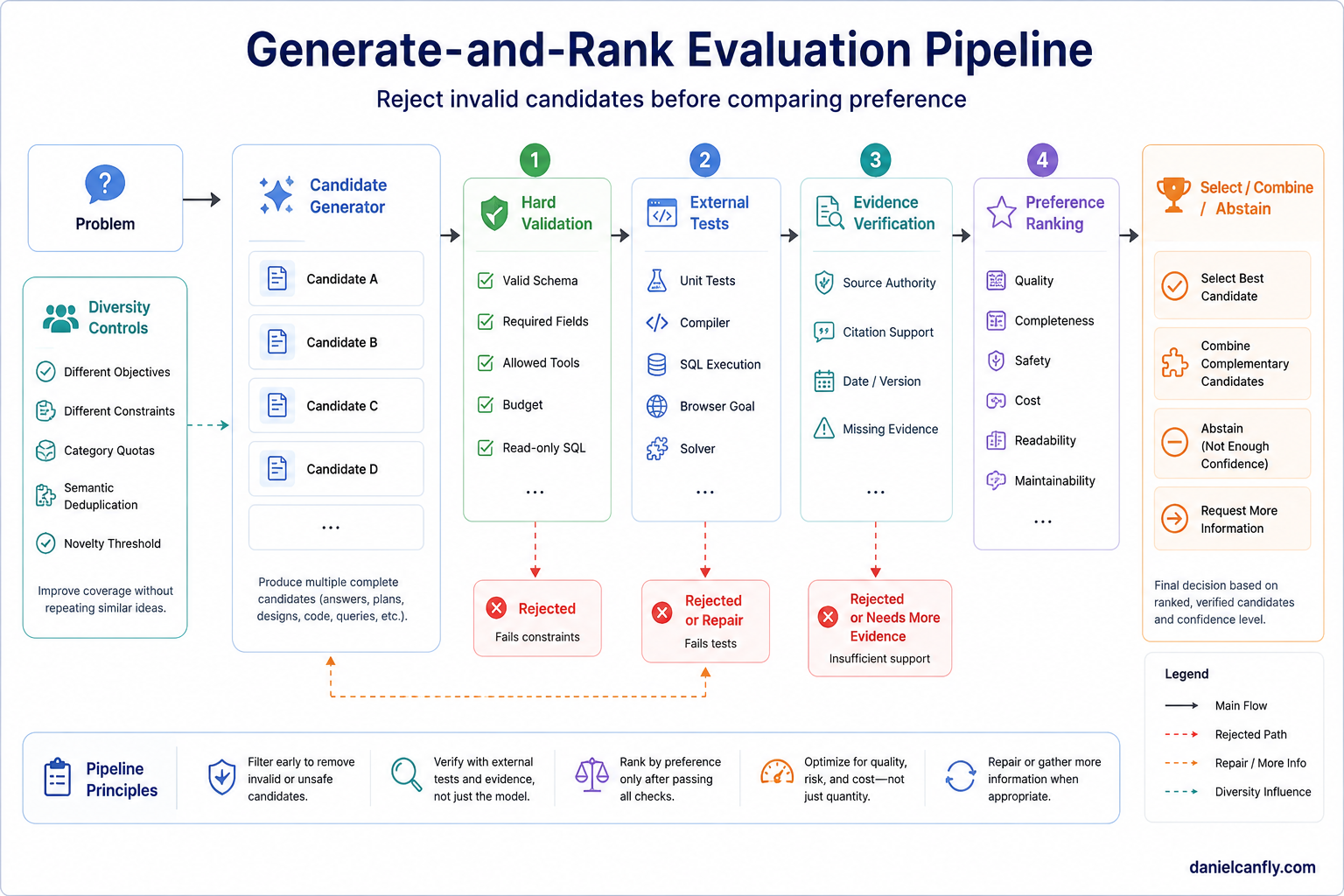

Figure 4-2 — Generate-and-Rank

Figure 4-2 ｜ Generate-and-Rank
The Candidate Generator produces several candidates, which then pass through Hard Validation, External Evaluation and Ranking before the system picks the best one. The point is not just generating more candidates; it is having reliable evaluation criteria.

Beam search: keep a bounded frontier

Beam search is an approximate search strategy that keeps only the top K partial candidates at each expansion layer.

Start
  -> A (8), B (7), C (3)
  -> keep A and B

Expand A and B
  -> A1 (6), A2 (9), B1 (8), B2 (4)
  -> keep A2 and B1

Core controls

beam width
branching factor
scoring function
maximum depth
diversity policy
termination condition

Why it is useful

Full expansion grows exponentially. Beam search limits the active frontier.

Why it is risky

Beam search is not complete in general. A branch that looks weak early may lead to the best final solution, but once pruned it is normally gone.

Standard beam search also does not provide general backtracking. It advances layer by layer with a bounded frontier. If the system restores a previously pruned branch, it has added another mechanism beyond ordinary beam search.

Diversity matters

A top-K frontier may contain five paraphrases of one idea.

Useful controls include:

semantic deduplication
diversity penalty
category quotas
novelty score
state canonicalisation

Diverse Beam Search is one example of explicitly optimising diversity rather than keeping near-duplicate sequences.

Tree of Thoughts: search over meaningful intermediate states

Tree of Thoughts generalises beyond a single Chain-of-Thought path by treating coherent intermediate units as search states.

A thought might be:

a partial mathematical solution
a candidate subgoal
a code-repair direction
a partial plan
a set of completed actions
an article structure

The central loop is:

Represent current state
  -> generate candidate thoughts
  -> evaluate candidates
  -> select states to expand
  -> prune weak states
  -> continue, backtrack, or stop

The original framework demonstrated deliberate exploration using methods such as breadth-first and depth-first search with state evaluation.

What makes ToT different from CoT

Capability	Chain-of-Thought	Tree of Thoughts
Intermediate units	Yes	Yes
Persistent alternatives	No	Yes
Intermediate evaluation	Not inherent	Core
Search controller	No	Yes
Pruning	No	Yes
Backtracking	No	Supported by the chosen search
State management	Minimal	Required

Thought granularity

A thought must be large enough to evaluate and small enough to expand.

Too small:

Every token becomes a node

The search explodes.

Too large:

The entire final answer becomes one node

The method collapses back into Generate-and-Rank.

A useful thought:

changes the next decision
has a meaningful state representation
can be evaluated independently
can be compared or deduplicated
does not make the tree unnecessarily deep

Evaluation options

scalar value estimate
pairwise comparison
promising / uncertain / impossible classification
deterministic constraints
external tests
environment feedback

The strongest available signal should be used. A compiler is usually a better code evaluator than a model’s stylistic confidence.

Search controls

branching factor
maximum depth
maximum nodes
beam width
duplicate-state detection
no-improvement limit
time and tool budget
accepted-solution threshold

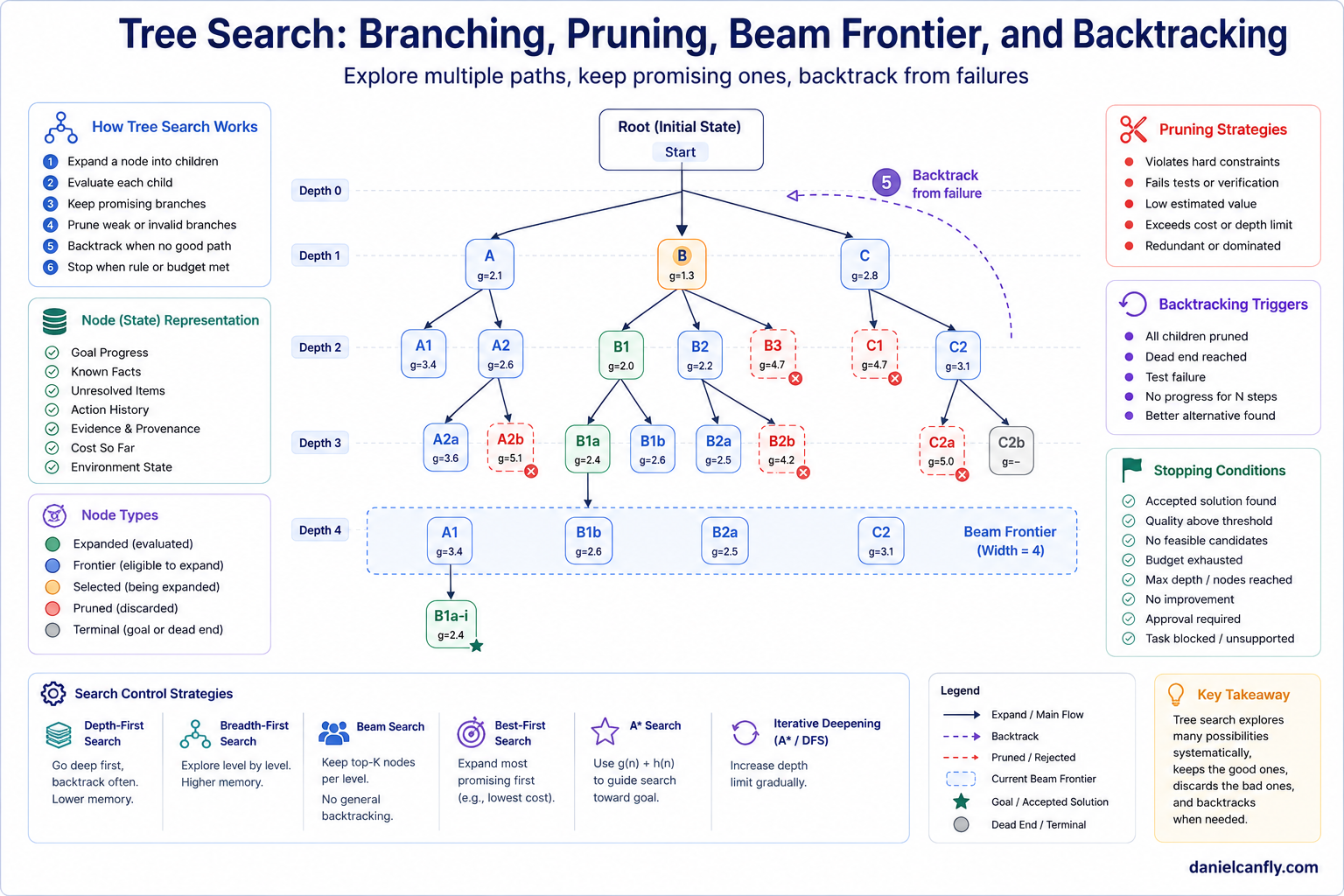

Figure 4-3 ｜ Tree Search: Branching, Pruning, and Backtracking
The search tree generates candidate branches from the Root; the Evaluator scores intermediate states; low-value branches get Pruned, failed paths get Backtracked, and only the solutions that pass verification survive.

Graph of Thoughts: combine, transform, and reuse intermediate results

Tree structures normally give each node one parent. Some tasks require a richer dependency structure.

Graph of Thoughts models intermediate information as graph vertices and dependencies as edges. Its operations may include:

generation
aggregation
refinement
reduction
transformation
feedback

Example:

Pricing analysis --------\
Feature analysis ----------> Positioning synthesis
Customer evidence --------/

A downstream thought may depend on several upstream thoughts. Intermediate results can be reused instead of copied into separate branches.

GoT is more than “a tree that merges at the end”

The important capability is an arbitrary dependency graph over thought units.

Possible uses include:

combining complementary analyses
refining a result using feedback
distilling several states into one
reusing one intermediate result in several downstream tasks
iteratively improving a state

Production requirements

A graph-shaped reasoning process needs:

node identity
dependency tracking
versioning
invalidation rules
provenance
merge semantics
conflict handling
deduplication
iteration or cycle limits
convergence criteria

If upstream evidence changes, downstream nodes derived from it may need to be invalidated and recomputed.

Main risk

The graph can become harder to understand than the problem it represents. GoT is valuable when combining and reusing intermediate states is central, not merely because a graph appears more sophisticated than a tree.

MCTS: balance exploration and exploitation in a search tree

Monte Carlo Tree Search builds a tree through repeated iterations. The conventional loop contains four phases:

Selection: choose a promising path while balancing known value and underexplored branches.
Expansion: add one or more children.
Simulation or evaluation: estimate the outcome from the expanded state.
Backpropagation: propagate the result through visited ancestors.

Selection
  -> Expansion
  -> Simulation / Evaluation
  -> Backpropagation
  -> next iteration

Classical MCTS often uses rollouts. Modern variants may use learned policies, value estimates, domain heuristics, or real environment results.

MCTS is not merely “Tree of Thoughts with scores”. It maintains statistics across repeated visits and uses a tree policy to decide where the next search effort should go.

LATS: tree search over language-agent actions and environment states

Language Agent Tree Search integrates language-model reasoning and action generation with Monte Carlo Tree Search, language-model value functions, self-reflection, and external environment feedback.

A node may contain:

Environment state
Action history
Observation
Reflection
Value estimate
Visit statistics

A simplified iteration is:

Select a tree state
  -> generate candidate actions
  -> execute or simulate an action
  -> observe the environment
  -> evaluate and reflect
  -> update tree statistics
  -> expand, revisit, or backtrack

ToT versus LATS

Dimension	Tree of Thoughts	LATS
Main state	Intermediate thought	Agent and environment state
Actions in environment	Optional	Central
External feedback	Optional	Core
Search statistics	Depends on controller	MCTS-style
Typical tasks	Deliberate problem solving	Coding, web interaction, interactive QA
Main cost	Model evaluation	Model plus environment execution and state management

Why environment feedback matters

For code repair:

Candidate patch
  -> run tests
  -> observe failures
  -> update branch value

For browser interaction:

Candidate click
  -> receive new DOM or screen
  -> measure progress
  -> update search state

This is stronger than asking the model which action “sounds best”, provided that the environment signal actually reflects the desired outcome.

Safety boundary

Search over actions is safe only when exploration is reversible or isolated.

Use:

sandbox
temporary branch
test database
mock service
dry run
reversible transaction
approval gate

Do not explore by sending five real payments, deleting five copies of production data, or publishing five competing messages.

Reward hacking and weak value functions

If the score is “make tests pass”, a system may delete the tests.

The evaluator must also consider:

unchanged requirements
policy compliance
side effects
maintainability
full regression suite
security
cost
user intent

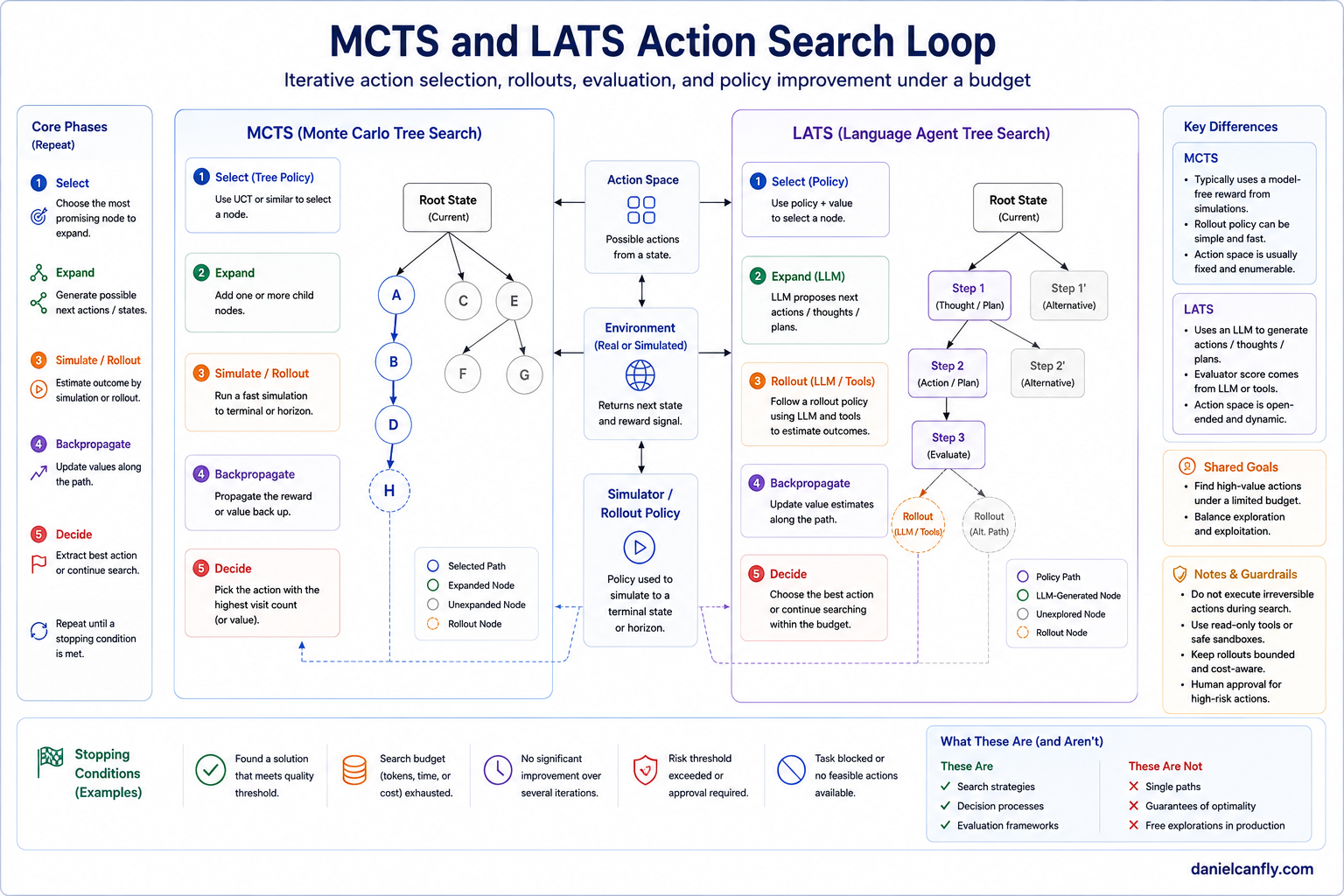

Figure 4-4 ｜ MCTS and LATS Search Loop
The Search Controller does Selection and Expansion. The Agent acts in the Sandbox Environment, gathers Observation, Test Result, Reflection and Value, and Backpropagates them into the search tree.

Case-based reasoning and neuro-symbolic methods are adjacent components

The earlier list becomes clearer when these two ideas are placed outside the main search-topology ladder.

Case-based reasoning supplies experience and candidate priors

Classical case-based reasoning is often described through:

retrieve a similar case
reuse or adapt its solution
revise the proposed solution
retain the new experience when appropriate

A case may contain:

context
action
outcome
failure
applicability conditions
lesson

Case retrieval can initialise or bias a search. It does not by itself imply a beam, tree, graph, or MCTS controller.

Risks include:

surface similarity hiding different conditions
obsolete cases
copying without adaptation
polluted case memory
similarity metrics that ignore critical constraints

Every retrieved case should be checked against the current environment.

Neuro-symbolic components strengthen representation and evaluation

Neuro-symbolic systems combine neural components with symbolic structures or procedures.

An agent workflow might use:

Natural-language request
  -> LLM extracts variables and constraints
  -> solver or rule engine computes a valid result
  -> verifier checks the mapping and output
  -> LLM explains the result

This can strengthen:

constraint satisfaction
mathematical calculation
planning
rule enforcement
consistency checking
executable validation

Neuro-symbolic is not one search topology. A solver may be used as:

candidate generator
evaluator
verifier
planner
constraint filter

The critical failure mode is translation error: a solver can precisely solve the wrong formalisation.

The evaluator is the centre of the system

Candidate generation receives most of the attention because it is visible. Evaluation usually determines whether search actually improves quality.

A production evaluator should be layered.

Layer 1: hard validity

schema
required fields
permissions
allowed tools
syntactic validity
budget
invariant checks

Layer 2: environment execution

tests
compiler
database
browser state
simulator
solver
rule engine

Layer 3: evidence and factual support

source authority
citation support
date and version
missing evidence
conflict detection

Layer 4: preference

readability
maintainability
user preference
strategic fit
cost-quality trade-off

The order matters. Preference should not rescue an invalid or unsupported candidate.

Avoid one model acting as sole generator, judge, and final approver

Using the same model everywhere can correlate errors.

Possible mitigations:

deterministic checks
environment feedback
independent evaluator
rubric-based pairwise comparison
calibrated abstention
human review for high-impact decisions
disagreement analysis
source-grounded verification

Diversity and state canonicalisation must be designed

Ten generated candidates may represent one actual idea.

Use Redis caching
Add a Redis cache layer
Route caching through Redis

These are not three meaningfully different strategies.

Useful controls:

generate by distinct objective
generate by distinct constraint
require solution categories
semantic deduplication
canonical state keys
category quotas
novelty thresholds
preserve one high-risk/high-upside candidate
preserve one low-cost candidate

Diversity should be evaluated in the problem state, not only in wording.

Search budgets and stopping rules

If each node creates four children and depth is five, full expansion may create:

4^5 = 1,024 leaf nodes

Real cost also includes:

generation
evaluation
tools
state persistence
deduplication
backtracking
environment reset
final synthesis

Production limits may include:

Limit	Purpose
Maximum candidates	Cap the total frontier
Maximum branching factor	Cap children per state
Maximum depth	Bound search horizon
Beam width	Bound active candidates per layer
Maximum nodes	Cap tree or graph size
Maximum tool calls	Bound environment interaction
Token budget	Bound model cost
Wall-clock limit	Bound latency
No-improvement limit	Stop stalled search
Accepted-solution threshold	Stop after a qualifying result
Cost-aware score	Penalise expensive candidates
Irreversible-action gate	Stop before unsafe execution

The highest raw score is not always the best production choice.

Candidate A:
quality 92
cost 5

Candidate B:
quality 93
cost 50

One extra quality point may not justify ten times the cost.

Choosing a search strategy

Start with the cheapest mechanism that addresses the actual uncertainty.

Task condition	Starting approach
One path is sufficient and externally verifiable	Single path plus verifier
One normalisable answer is unstable across samples	Self-consistency
Several complete alternatives need comparison	Generate-and-Rank
Partial candidates develop in layers	Beam search
Early choices matter and backtracking is useful	Tree of Thoughts or another tree search
Intermediate results must merge or be reused	Graph of Thoughts
Search acts in an environment with feedback	MCTS-style action search or LATS
Similar validated cases are available	Case retrieval as a prior
Formal constraints or exact procedures exist	Solver, rule engine, or neuro-symbolic component

Before paying for multi-path search, ask:

Are there genuinely different candidates?
Can intermediate states be represented?
Can candidates be evaluated reliably?
Does an early choice affect later outcomes?
Is exploration safe and reversible?
Is the quality gain worth the cost?
Is there a clear stopping rule?

If the answer to evaluation is no, generating more branches usually magnifies uncertainty rather than resolving it.

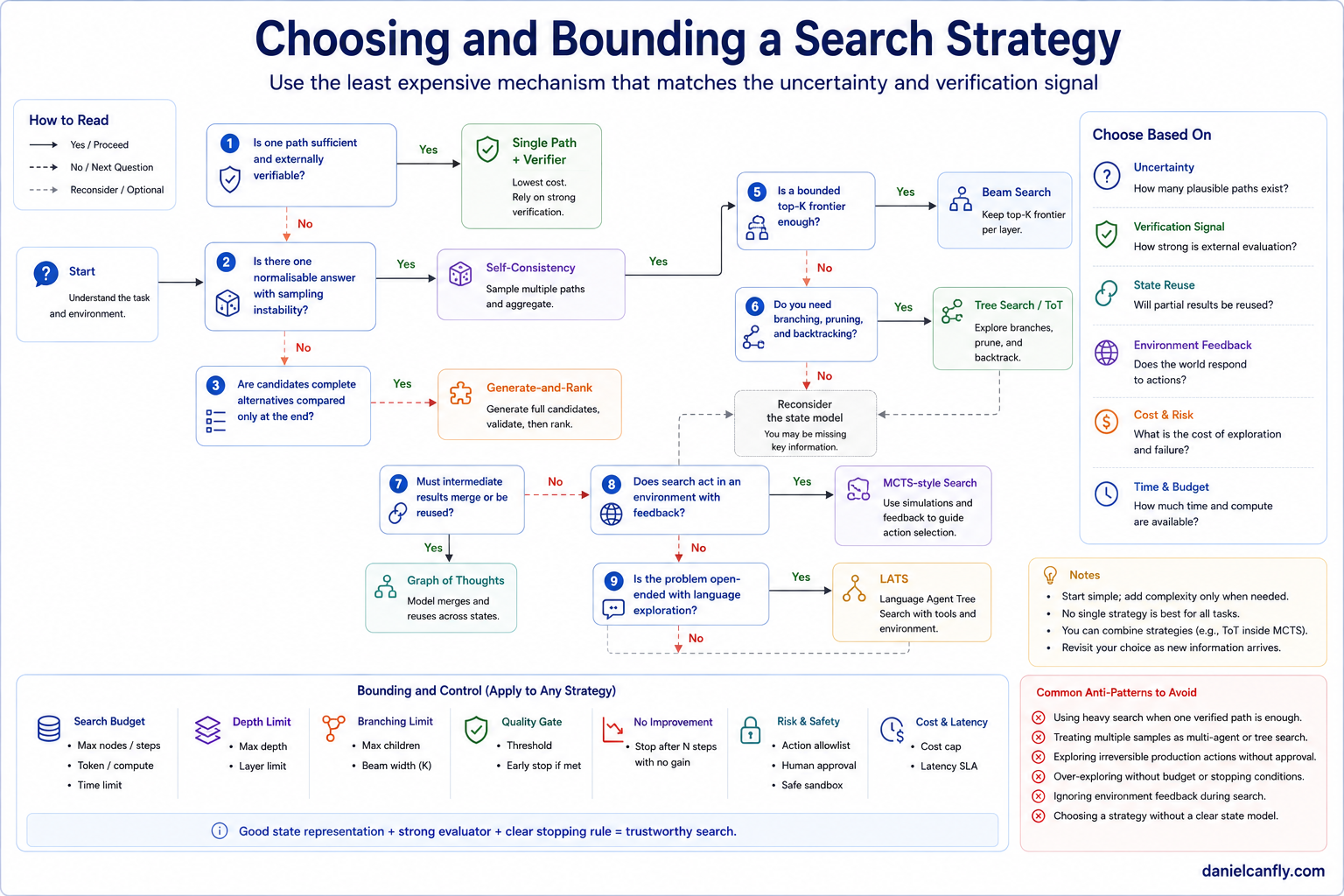

Figure 4-5 ｜ Search Cost and Answer Quality
Moving from Single-path to Generate-and-Rank, Beam Search and Tree Search may lift quality, but cost also keeps climbing, and the later stages usually hit Diminishing Returns.

Common anti-patterns

Tree search for every task

A simple, verifiable transformation does not need a search frontier.

Many candidates without a reliable evaluator

This is draft accumulation, not search.

Sampling confused with Multi-Agent

Several generations from one model are not several agents.

Self-consistency used as fact checking

Agreement does not establish truth.

Beam search described as complete or backtracking by default

Pruned states are normally lost.

ToT reduced to a decorative tree diagram

Without state representation, evaluation, and control, the tree has no operational meaning.

GoT used when no merge or reuse is required

A graph adds dependency cost without adding value.

LATS over irreversible production actions

Search must occur in a sandbox, simulation, or controlled reversible environment.

Model-only scoring

The generator and evaluator reproduce the same error.

No semantic deduplication

The frontier fills with paraphrases.

No stopping rule

The system searches until the infrastructure, budget, or reader loses the will to live.

Complete example: search for a code repair

The task is:

Fix an API integration test that expected 200 and received 401.

Represent the state

Known:
- endpoint exists
- request reached the server
- a test token was generated

Unknown:
- token validity
- audience
- scope
- authorisation header format

Generate distinct candidate causes

A. expired token
B. wrong audience
C. missing scope
D. malformed authorisation header

Apply hard and evidence-based ranking

Use configuration, logs, and token claims to rank which branches are worth testing first.

Expand branch B

Inspect token claims
  -> audience does not match API configuration

Execute a reversible candidate fix

Update test configuration
  -> run target integration test
  -> pass

Verify broadly

Run authentication test suite
  -> pass

Run lint
  -> pass

Run build
  -> pass

Check unrelated files
  -> unchanged

Stop

The completion contract is satisfied, so lower-value branches are not expanded.

The reliable part is not that the model imagined four root causes. It is that the important candidate was tested against the real environment, and the search stopped after the full acceptance criteria passed.

Conclusion

The main mechanisms occupy different positions in a search system:

Single-path reasoning keeps one trajectory.
Chain-of-Thought makes one trajectory more explicit.
Self-consistency samples complete paths and aggregates answers.
Generate-and-Rank evaluates several complete alternatives.
Beam search keeps a bounded layer-wise frontier.
Tree of Thoughts searches over evaluated intermediate thought states.
Graph of Thoughts combines, transforms, and reuses intermediate states.
MCTS allocates repeated search effort using tree statistics.
LATS applies MCTS-style search to language-agent actions and environment feedback.
Case-based reasoning supplies reusable experience and candidate priors.
Neuro-symbolic components supply formal representation, constraints, computation, or verification.

More branches do not automatically produce more truth.

A production search system needs:

meaningful candidates
  + explicit state
  + reliable evaluation
  + bounded search control
  + safe execution
  + a stopping rule

The decisive question is not how many thoughts the model can generate.

It is:

Which signal justifies expanding this path, and which condition proves that search should stop?

Part 5 examines what happens after an output or action fails verification:

How should an agent retry, fall back, repair, replan, or learn from failure without creating another uncontrolled loop?
