The first seven parts separated agent design into six practical dimensions:

execution path
decision and planning
reasoning and search
verification and recovery
agent organisation
state and memory

Production design begins when those dimensions are assembled around a real task, real permissions, real failure modes, and an accountable terminal outcome.

A production agent is not simply:

Prompt
  -> Model
  -> Tools
  -> Answer

A more honest description is:

Admission
  -> Orchestration
  -> Execution
  -> Acceptance

Cross-cutting:
Identity · Policy · State · Memory · Budget · Observability · Human Control

The objective is not maximum autonomy. It is bounded autonomy inside a system that can answer:

Who requested this action?
Is the request permitted?
Which path did the task take?
What state has already changed?
Which evidence supports the result?
Which checks passed or failed?
Is another attempt safe?
Who owns the final decision?
What terminal state ends the run?

This article presents six production recipes:

production RAG
deep-research agent
coding agent
browser or computer-use agent
high-risk enterprise automation
long-running monitor

They are not universal blueprints. Each is a reference composition that must be adjusted to the task, data, risk, latency, and operational environment.

Production readiness is a risk-relative claim

“Production-ready” should never mean “contains many enterprise-looking boxes”.

A low-risk internal summariser and a payment automation do not need the same controls. The required evidence should scale with:

reversibility
financial or legal impact
data sensitivity
permission scope
duration
number of side effects
uncertainty in the environment
cost of a false positive
cost of a false negative

A design is ready only when its controls match its risk.

Four runtime stages and three cross-cutting planes

The previous draft described seven layers. That framing was useful as an inventory, but it mixed sequential stages with concerns that surround the whole run.

A clearer reference model uses four runtime stages and three cross-cutting planes.

Runtime stage 1: admission and routing

This stage decides:

whether the request is supported
whether it needs an agent at all
which source of truth is required
whether tools are needed
whether the user may access the data
which risk class applies
whether clarification or human handling is required

Possible outcomes include:

direct response
fixed pipeline
RAG
SQL or deterministic tool
bounded agent workflow
human review
clarification
unsupported

A router must be allowed to abstain. Forced routing converts uncertainty into confident misclassification.

Runtime stage 2: orchestration

Orchestration owns movement through the task:

workflow or state machine
plan and plan version
task dependencies
queues
retries and fallbacks
pause and resume
approval states
deadlines
terminal outcomes

The orchestrator does not need to decide every local action. It may call a bounded ReAct executor, launch a DAG, or run a deterministic pipeline inside one state.

Runtime stage 3: execution

Execution performs work through:

language models
retrieval
databases
APIs
code sandboxes
browsers
files
external services
specialised workers

Every executable capability should have a contract:

allowed inputs
permissions
timeout
cost
side-effect class
idempotency behaviour
structured output
error taxonomy

Runtime stage 4: acceptance and completion

This stage determines whether the result may be accepted.

It may use:

schema validation
executable tests
source and citation checks
policy checks
post-condition verification
model-based rubric evaluation
authorised human approval

Possible outcomes should include more than pass and fail:

completed
failed
partial
blocked
cancelled
pending
unsupported
inconclusive
requires human action

Cross-cutting plane 1: identity, policy, and risk

This plane constrains every runtime stage:

authentication
authorisation
data access
tool allowlists
delegation rights
secret isolation
sandboxing
risk classification
approval requirements
irreversible-action gates

Important controls must exist in application or infrastructure enforcement, not only in natural-language instructions.

Cross-cutting plane 2: state, memory, and evidence

This plane preserves what the run needs:

workflow state
step status
plan version
working memory
evidence store
user-scoped memory
procedural memory
shared state
tool results
approval record

State, memory, and evidence should remain distinct even when they share physical storage.

Cross-cutting plane 3: operations, evaluation, and accountability

This plane makes the system operable:

traces
metrics
logs
audit records
replay
alerts
cost accounting
offline evaluation
regression suites
release gates
incident response
kill switches

Observability explains what happened in live runs. Evaluation measures whether a system version is good enough before and after release. A per-run verifier decides whether one candidate satisfies one contract. These are related, but not interchangeable.

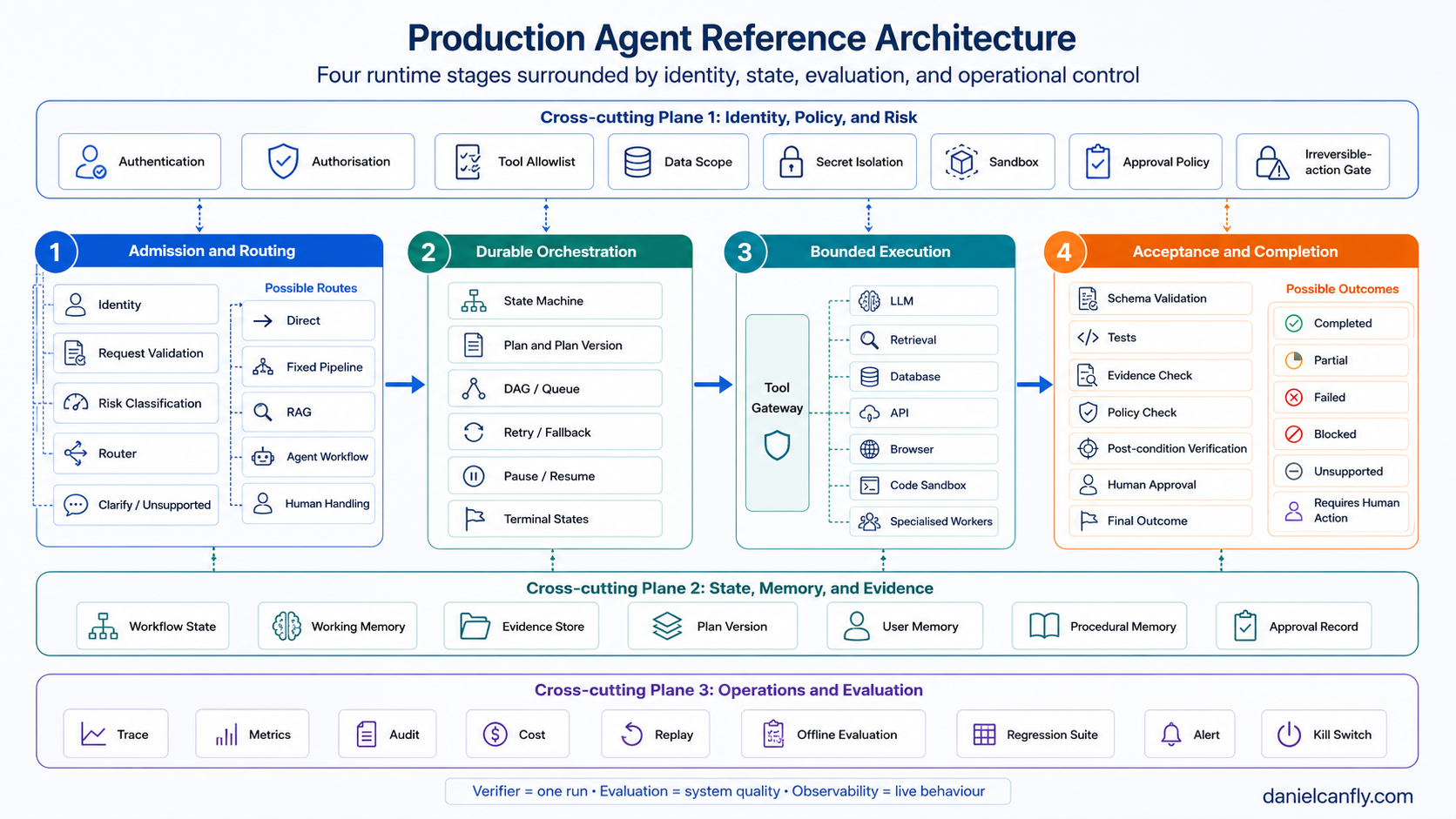

Figure 8-1｜Four Runtime Stages and Three Cross-cutting Planes

Start with the non-agent baseline

Before selecting any recipe, ask whether one bounded operation or a fixed pipeline is sufficient.

Input
  -> Validate
  -> Model or Function
  -> Validate Output
  -> Result

Good baseline tasks include:

translation
rewriting
summarisation
fixed-field extraction
classification
format conversion
answering from supplied content
a known calculation
a stable retrieval pipeline with no adaptive branching

A direct path may still include:

input validation
output schema
policy checks
token limits
fallback model
basic logging
deterministic post-processing

The principle is simple:

Use the smallest architecture that can satisfy the contract reliably.

An agent theme park is an expensive way to discover that a function would have worked.

Recipe 1: production RAG

The original RAG architecture combines a parametric generator with retrieved non-parametric knowledge. In production, the difficult part is not adding a vector index. It is controlling source selection, access, context assembly, evidence, and failure.

A fixed RAG pipeline may remain entirely non-agentic:

Query
  -> Retrieve
  -> Rerank
  -> Build Context
  -> Generate
  -> Verify

Agentic behaviour earns its place only when the path must adapt, for example:

source selection depends on the request
retrieval must continue after inspecting gaps
the system must decide whether to clarify
several tools or corpora may be needed
evidence conflicts require another research step

Production flow

Request
  -> Identity and Query Admission
  -> Source Router
  -> Query Normalisation or Rewrite
  -> Permission-aware Retrieval
  -> Deduplicate and Rerank
  -> Context Builder
  -> Generate with Citation IDs
  -> Claim-to-Evidence Verification
  -> Answer, Clarify, Retry, or Abstain

Enforce access before model exposure

An ACL filter placed only after unrestricted retrieval is too late if unauthorised content has already reached logs, caches, rerankers, or model context.

Use defence in depth:

authorise the user and tenant
restrict the searchable corpus
apply metadata filters during retrieval
remove unauthorised candidates before reranking
recheck selected context before generation
audit denied access attempts

Query rewrite is a controlled transformation

A rewrite node should preserve:

user intent
security scope
entities
time range
language
source constraints

It must not silently broaden a private query into a wider corpus.

Context builder responsibilities

The context builder should manage:

token budget
source diversity
duplicate passages
document version
chunk adjacency
citation identifiers
permissions
recency
conflicting evidence
prompt-injection boundaries

Retrieved content is untrusted data. Instructions found inside a document or webpage must not automatically override the system or tool policy.

Verification

A citation-bearing answer still requires checks:

Does each material claim have evidence?
Does the cited passage support the claim?
Is the source permitted?
Are versions and dates compatible?
Were important limitations omitted?
Is the answer complete enough for the contract?
Should the system abstain?

Failure policy

Failure	Primary response
No permitted source found	Clarify, switch approved corpus, or abstain
Low retrieval coverage	Rewrite or run a deeper retrieval profile
Citation mismatch	Repair or reject the answer
Conflicting sources	Surface the conflict or request review
Stale source	Prefer a valid newer source or label the limitation
Unauthorised content	Remove, record, and investigate
Context budget exceeded	Compress, prioritise, or split the task
Prompt injection in source	Treat as data, exclude instructions, log the incident

Production state

Persist only what is needed to reproduce and diagnose the run:

original query
rewritten query
corpus and policy version
retrieved document IDs and versions
reranker scores
selected evidence
citation map
verifier result
retry count
terminal outcome

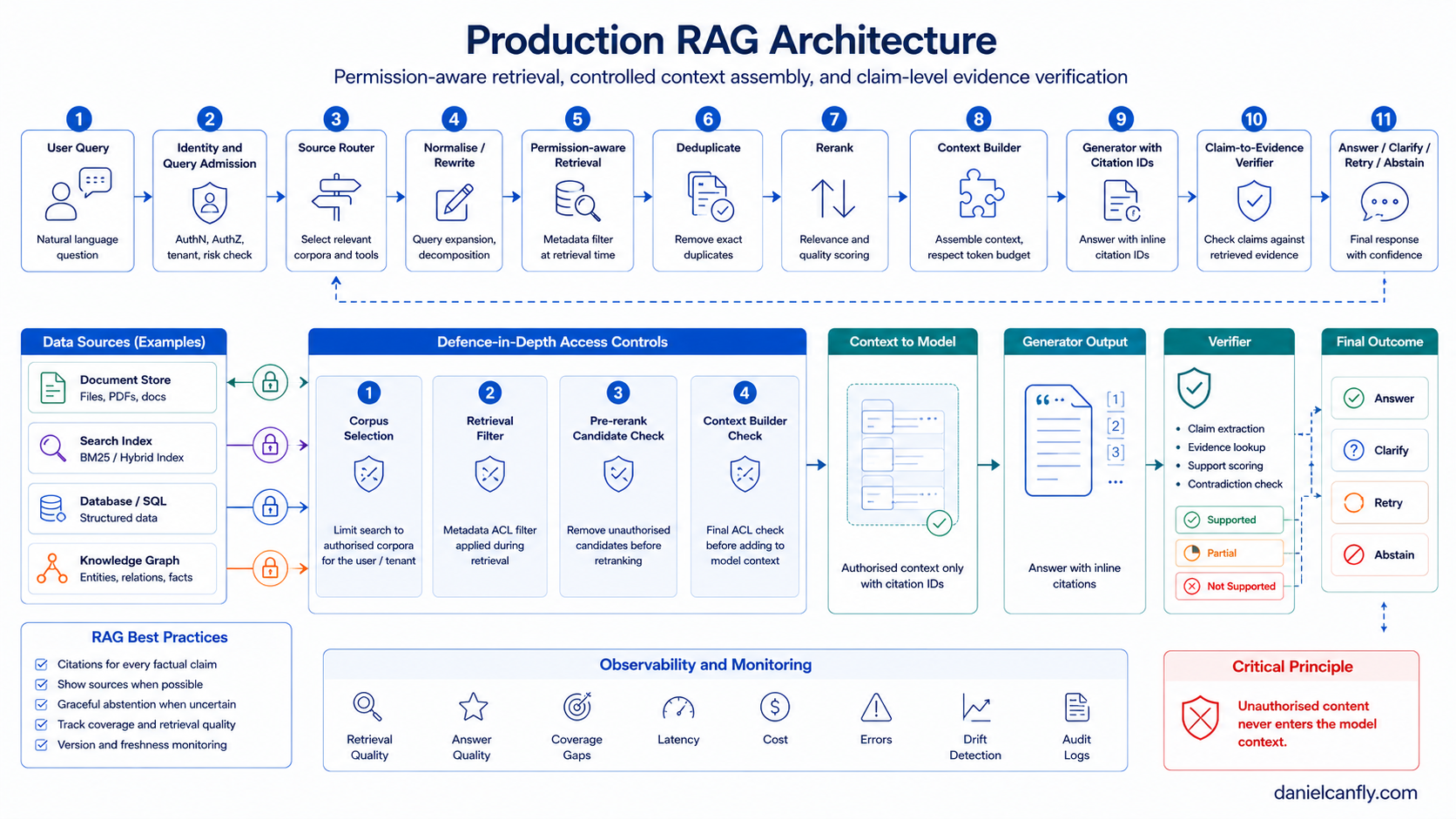

Figure 8-2｜Production RAG Pipeline

Recipe 2: deep-research agent

A deep-research task is not simply “search more”. It must transform an open question into traceable claims and a synthesis whose gaps are visible.

A typical architecture is:

Research Goal
  -> Admission and Source Policy
  -> Planner
  -> Versioned Research Plan
  -> Dependency-aware Task Graph
  -> Bounded Research Workers
  -> Evidence Store
  -> Synthesis
  -> Coverage and Conflict Verifier
  -> Complete, Repair, or Replan

The planner produces research contracts

A useful subtask includes:

question
objective
dependency
allowed sources
required evidence
output schema
completion criteria
budget
deadline
failure policy

“Research the market” is not a contract.

DAG is optional, not ceremonial

Use a DAG when subtasks have genuine directional dependencies and independent branches.

Parallel branches might cover:

product capability
pricing
security
deployment
customer evidence
regulation

Do not parallelise merely because worker cards look impressive. Parallel tasks can saturate rate limits, duplicate searches, and create an expensive join problem.

Evidence store, not paragraph warehouse

Each evidence unit should preserve:

claim or field
source
source type
publication date
access date
document version
supporting extract
scope
worker
validation status
source lineage

Source lineage matters because five secondary articles citing one original report do not represent five independent sources.

Synthesis must preserve disagreement

The synthesiser should not flatten conflicting evidence into one smooth paragraph.

It should record:

agreement
conflict
unresolved gap
time or version difference
inference
confidence
consequence for the recommendation

Replanning boundary

Use local repair when one source or query failed but the subtask remains valid.

Use replanning when:

the decomposition is incomplete
a premise is false
several dependencies change
the deliverable changes
the evidence contract cannot be satisfied

A verifier failure should not automatically restart all research. Valid evidence should be preserved.

Stop conditions

required questions covered
minimum evidence quality met
material conflicts disclosed
citation coverage passed
no critical gap remains
budget reached
no-improvement limit reached
human deadline reached

“One more source might exist” is not a completion policy.

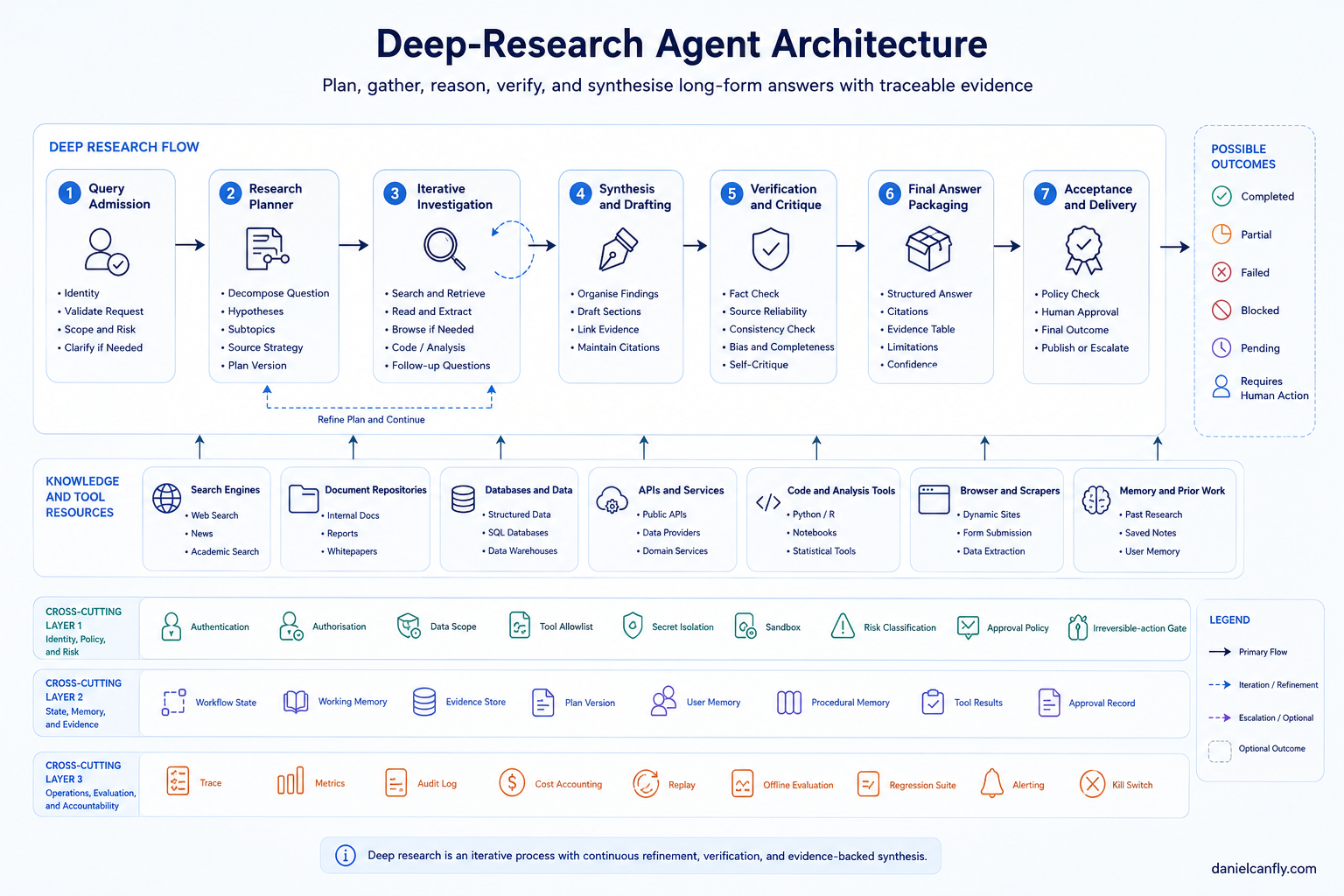

Figure 8-3｜Deep Research Agent Architecture

Recipe 3: coding agent

A production coding agent is an executable software-change workflow, not a code-completion prompt.

It must be able to:

understand the repository
constrain the change
edit in isolation
execute tests
read structured failures
repair within limits
inspect the final diff
reproduce the result
stop safely

Reference flow

Task
  -> Repository and Environment Snapshot
  -> Scope and Acceptance Contract
  -> Inspect Code, Tests, and History
  -> Plan or Direct Repair
  -> Generate Patch
  -> Static Validation
  -> Sandbox Execution
  -> Target Test
  -> Related and Regression Tests
  -> Lint, Type Check, and Build
  -> Security and Change-scope Review
  -> Evidence Bundle
  -> Approval or Delivery

Snapshot first

Record:

repository URL or identity
branch
commit SHA
dirty state
runtime version
dependency lock
environment variables by reference, never raw secrets
test environment
relevant service versions

A patch without a reproducible base is a rumour wearing a diff.

Inspect before editing

The agent should examine:

failing test
call path
nearby implementation
configuration
similar code
repository conventions
recent relevant changes
error logs

A stack trace may identify where the symptom appears, not where the defect originates.

Layered validation

The exact test suite depends on the repository, but the acceptance chain should normally include:

target test
related test group
relevant regression suite
lint and formatting checks
type checking
build or package check
security checks where applicable
diff and scope review
reproducibility check

Do not claim that every repository must always run an enormous global suite. Define the required suite in the task contract and explain any unrun checks.

Protect the verifier

The agent must not gain a pass by:

deleting a test
skipping a test
weakening an assertion
changing an expected result without authorisation
editing protected fixtures
hiding the error
modifying unrelated files

Track test-file changes separately and require review when acceptance artefacts change.

Sandboxing and permissions

Code execution should use:

isolated workspace
least-privilege credentials
controlled network access
resource limits
timeouts
output limits
secret isolation
disposable environment where feasible

Delivery evidence

A deliverable should include:

base commit
changed files
explanation of the root cause
commands run
exit codes
tests passed and not run
lint and build results
remaining risks
reproducible installation or placement steps

Benchmarks such as SWE-bench emphasise that real repository repair requires coordinated changes and executable evaluation, not merely plausible code generation.

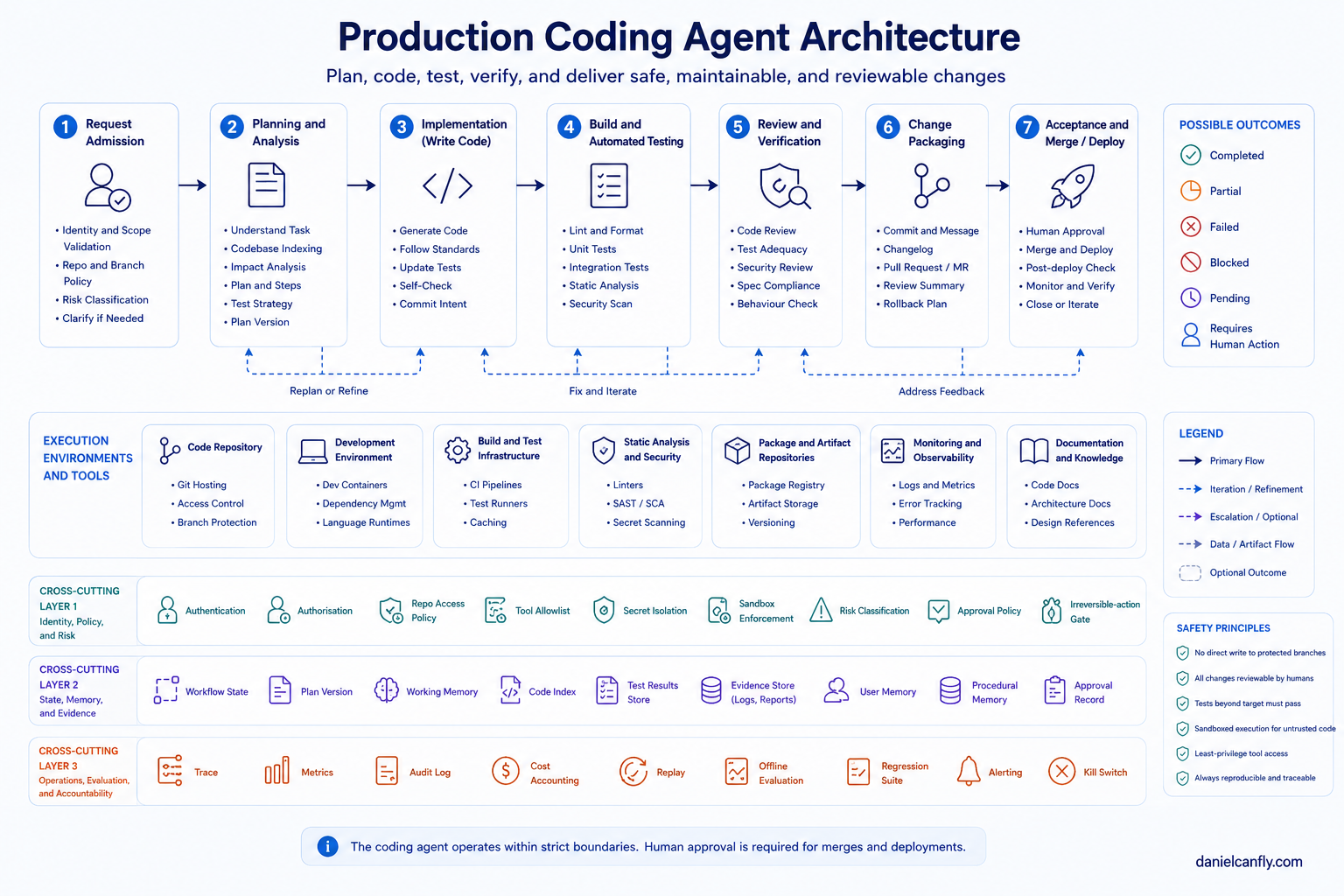

Figure 8-4｜Coding Agent Reference Flow

Recipe 4: browser and computer-use agent

A browser agent operates in a partially observable, changing environment.

Clicking a button is not success. The system must observe a post-condition.

Reference loop

Goal and Current State
  -> Observe Interface
  -> Parse Trusted and Untrusted Content
  -> Build Structured Browser State
  -> Check Policy
  -> Select Allowed Action
  -> Duplicate and Risk Check
  -> Execute
  -> Observe New State
  -> Verify Progress or Completion

Structured browser state

Record:

current URL and origin
page title
selected account or tenant
visible controls
active element
form values
navigation history
last action
last observation
download status
session status
screenshot or DOM reference
retry count
transaction identifier where relevant

Action classes

Low-risk examples:

navigate
scroll
inspect
search
select
type into a draft field
download a permitted file

Higher-risk examples:

submit
send
purchase
delete
publish
change permissions
upload sensitive data
accept legal terms

High-risk actions should pass through a preview, policy check, and approval gate.

Prompt injection and untrusted interfaces

Web content may contain instructions intended to manipulate the agent.

Treat page text, email content, documents, and retrieved instructions as untrusted input. The action policy should come from the trusted application boundary, not from the page.

Post-condition verification

After an action, check the actual effect:

confirmation message
expected URL
server response
created record
transaction ID
downloaded file and checksum
changed form status
before-and-after state

A lost response after a write creates an ambiguous side effect. Reconcile the outcome before repeating the action.

Recovery

wait and re-observe
close or handle a modal
return to a known safe state
reload
re-authenticate
use an alternative approved route
ask the user
hand over to a person
stop

Realistic web benchmarks such as WebArena show why long-horizon browser tasks require functional post-condition evaluation rather than action-count optimism.

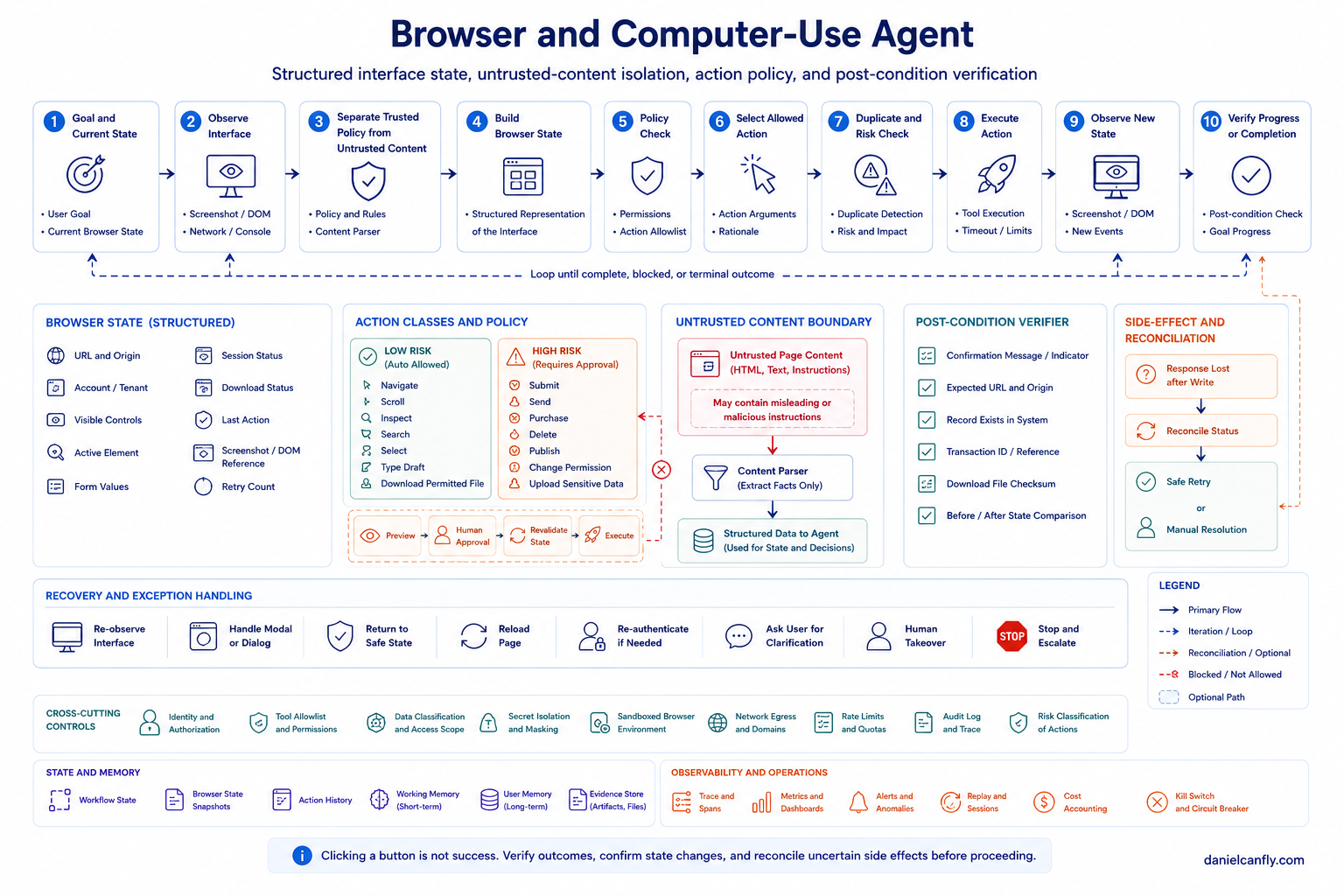

Figure 8-5｜Browser / Computer-Use Agent Reference Loop

Recipe 5: high-risk enterprise automation

High-risk automation should not give a language model direct authority over a business transaction.

The safer pattern is:

Request or Event
  -> Authenticate
  -> Authorise
  -> Agent Prepares Structured Proposal
  -> Deterministic Validation
  -> Risk Classification
  -> Approval Decision
  -> Transaction Service Executes
  -> Post-condition Verification
  -> Reconciliation and Audit

The agent prepares a proposal

For a payment, the proposal may include:

payee
amount
currency
invoice
account
business reason
requested execution time
risk flags
expected effect
reversibility
idempotency key

The agent may assemble evidence and explain the request. It should not silently become the transaction authority.

Deterministic validation

Validate:

schema
amount range
account ownership
vendor status
duplicate invoice
permission
policy
business rule
sanctions or compliance checks where applicable
transaction limits
required approvals

Durable approval

An approval request should show:

exact proposed action
evidence
before state
expected after state
risk
reversibility
alternatives
expiry
who may approve

When execution resumes, revalidate state. Approval for yesterday’s account balance should not automatically authorise today’s changed transaction.

Transaction boundary

Use a deterministic service for the actual side effect.

Require:

idempotency
reconciliation
transaction identifier
least privilege
rollback or compensating action where possible
immutable audit record
separation of duties for high-impact operations

Security and governance

NIST’s AI Risk Management Framework and current OWASP guidance both reinforce the need to manage risk across the lifecycle rather than treating model behaviour as the sole control boundary.

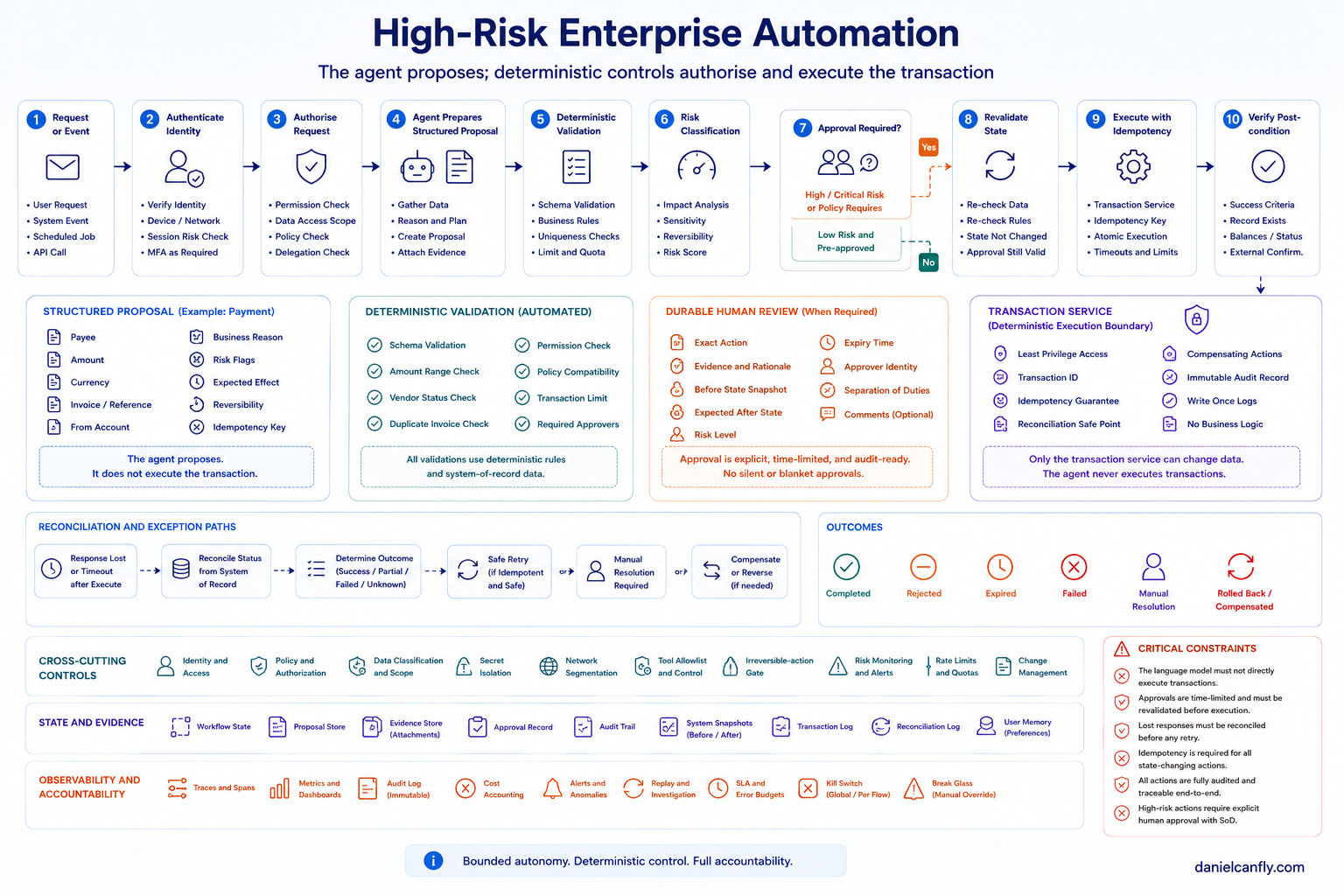

Figure 8-6｜High-Risk Enterprise Automation Pattern

Recipe 6: long-running monitor

A long-running monitor repeatedly checks a condition and notifies only when a meaningful change occurs.

Examples:

price threshold
weather risk
service outage
new filing
policy change
job posting
inventory return
security event

Reference flow

Schedule or Event
  -> Load Cursor and Baseline
  -> Fetch Current Source
  -> Validate Source Health
  -> Normalise Observation
  -> Compare with Baseline
  -> Condition Met?
       no -> Update Health State and Stop Quietly
       yes -> Verify Change
            -> Deduplicate and Apply Cooldown
            -> Notify or Escalate
            -> Update Cursor and Alert History

Persistent state

Store:

source
cursor
baseline
last successful check
last attempted check
last change
last notification
alert signature
cooldown
retry count
health status
policy version

Event contract

A common event envelope such as CloudEvents can standardise identity, type, source, time, and correlation across event producers and consumers.

No-change behaviour

When the condition is not met:

Do not notify

Silence is part of the product contract, not a missing feature.

Health monitoring

A monitor can fail silently while continuing to schedule runs.

Track:

missed run
stale last-success time
repeated empty responses
source schema change
authentication expiry
dead-letter messages
clock or scheduler drift
alert-delivery failure

Notification policy

severity
recipient
channel
quiet hours
cooldown
acknowledgement
escalation
maximum reminders
deduplication

Stop and retention

Long-running systems need:

expiry
cancellation
kill switch
retention policy
history compaction
source-removal handling
ownership transfer
human escalation

Per-run verifier, evaluation suite, and observability

These three mechanisms are often collapsed into “evaluation”, but they operate at different scopes.

Per-run verifier

Question:

Did this run satisfy its contract?

Examples:

citations support claims
target tests passed
transaction post-condition holds
browser task reached the goal

Evaluation suite

Question:

Is this system version good enough to release or continue operating?

It may include:

curated task set
regression cases
adversarial inputs
permission tests
prompt-injection tests
failure and recovery scenarios
cost and latency thresholds
human-scored quality
canary or shadow evaluation

Observability

Question:

What happened in live operation, and where is the system degrading?

Use traces, metrics, and logs. OpenTelemetry provides vendor-neutral conventions for telemetry and distributed tracing, but the application still needs domain-specific attributes.

Agent spans may include:

request and trace ID
route
state transition
model and prompt version
tool
policy decision
evidence IDs
retry or replan
approval
cost
terminal outcome

A trace explains a run. It does not prove that the architecture is good. An evaluation score measures performance. It does not explain one production incident.

Shared control contracts

Every recipe needs the following controls, although the values differ.

Budget

Budgets can limit:

model calls
tool calls
search queries
browser actions
test runs
worker count
wall time
tokens
monetary cost
retries
replans
approval reminders

Use a global task budget plus per-component allocations.

Timeout and cancellation

Define timeouts for:

model call
tool
worker
approval
state
workflow
external source

Define what follows timeout:

retry
reconcile
fallback
partial result
reassign
human review
terminal failure

Idempotency and reconciliation

Any side-effecting operation should define:

request identity
duplicate detection
outcome lookup
safe repeat behaviour
ambiguous-result handling
compensating action

Terminal outcomes

At minimum:

completed
failed
partial
pending
blocked
cancelled
expired
unsupported
inconclusive
requires human action

A system without a formal safe stop has only an expensive hope loop.

Security boundaries for agentic systems

Agent security is not one prompt.

Treat external content as untrusted

This includes:

web pages
documents
email
tool output
retrieved memory
user-uploaded files
other agents’ messages

Separate data from instructions and preserve source boundaries.

Minimise agency

Give each executor:

only the tools it needs
the smallest data scope
short-lived credentials
resource limits
explicit side-effect classes
bounded delegation
no hidden route to a more privileged tool

Validate model output before execution

A model proposal that becomes SQL, code, an API call, or a transaction should pass through a typed parser, policy engine, and execution boundary.

Protect memory and state

Untrusted content should not be able to write permanent memory, change policies, or rewrite the goal without validation.

Prepare for incident response

Record enough to:

suspend the workflow
revoke credentials
identify affected tasks
replay safely
correct memory
notify owners
preserve evidence

Comparison of the six recipes

Recipe	Primary uncertainty	Main execution structure	Strongest verification signal	Essential persistent data
Production RAG	Which evidence answers the query?	Pipeline with optional adaptive retrieval	Claim-to-source support and ACL	Query, source versions, citation map
Deep research	Which subquestions and sources close the evidence gaps?	Planner + task graph + outer state machine	Coverage, provenance, and conflict checks	Plan, evidence units, source lineage
Coding agent	Which repository change satisfies executable acceptance?	Stateful Generate-and-Test workflow	Tests, build, diff, reproducibility	Snapshot, patch, commands, results
Browser agent	Which safe action reaches the interface goal?	Bounded action loop + state machine	Functional post-condition	Browser state and action history
High-risk automation	May a proposed side effect proceed?	Proposal workflow + deterministic transaction service	Policy, approval, and reconciliation	Proposal, approvals, transaction ID
Long-running monitor	Has a meaningful change occurred?	Event or scheduled stateful workflow	Change verification and deduplication	Baseline, cursor, health, alert history

These are starting points, not universal ratings. Cost and latency depend on implementation, scale, data, and the quality standard.

Assembly order

Do not start by choosing a framework.

1. Define the contract

desired outcome
accepted evidence
prohibited outcomes
terminal states
latency and cost envelope

2. Decide whether an agent is required

Use Direct or a fixed Pipeline when possible.

3. Map data and tools

source of truth
permissions
side effects
freshness
availability
trust boundary

4. Separate fixed and adaptive work

Hard-code stable logic. Add autonomy only where observations genuinely change the next useful action.

5. Choose the execution structure

Pipeline
Router
State Machine
DAG
bounded action loop
event-driven workflow

6. Define verification before generation

schema
evidence
test
post-condition
policy
human decision

7. Define state and memory

what must be exact
what may be summarised
what persists
what expires
who may read or write

8. Apply identity and policy

authorisation
tool access
data scope
approval
risk
sandbox

9. Add budgets and stops

calls
time
money
retries
replans
concurrency
terminal outcomes

10. Instrument and evaluate

trace
metrics
audit
replay
offline evaluation
security tests
release gate
rollback

Once these questions are answered, a framework becomes an implementation choice rather than an architecture substitute.

Common anti-patterns

Every request enters the most autonomous path

Simple work pays maximum latency, cost, and failure surface.

Policy is written only in the prompt

The runtime still exposes the forbidden capability.

Unauthorised data is filtered only after model exposure

The leak has already happened.

The orchestrator stores progress in conversation prose

Precise state becomes lossy and difficult to resume.

The verifier asks only another model whether the answer is correct

No executable or evidential signal exists.

Runtime tracing is mistaken for evaluation

The team can see every wrong answer beautifully.

Evaluation is performed only before launch

Model, prompt, tools, sources, and environment drift after release.

Human approval shows no evidence or exact action

Approval becomes ceremonial button pressing.

Side effects have no idempotency or reconciliation

Timeouts become duplicate writes.

The coding agent changes tests to manufacture a pass

The acceptance mechanism has become part of the attack surface.

Browser success means “the click happened”

No post-condition proves the task completed.

Monitoring alerts on every run

The system produces notification fog instead of useful signal.

Memory stores everything

Sensitive, stale, and unverified information becomes future context.

There is no supported terminal failure

Every failure is converted into another attempt.

Conclusion

Production agent architecture is the discipline of assembling autonomy around controls.

A mature system usually contains:

Identity and Admission
  -> Router
  -> Durable Orchestration
  -> Bounded Execution
  -> Independent Acceptance

Surrounded by:
Policy · State · Memory · Evidence · Budget · Evaluation · Observability · Human Control

The six recipes emphasise different constraints:

Production RAG controls evidence and access.
Deep research controls decomposition, provenance, and coverage.
Coding agents control executable changes and reproducibility.
Browser agents control action in an uncertain interface.
High-risk automation controls authority and side effects.
Long-running monitors control time, change, silence, and health.

What earns a system the right to operate is not the number of agents or tools. It is whether the system can prove what it did, constrain what it may do, recover without duplicating harm, and stop with an accountable result.

Part 9 turns the series into a decision process:

Given a real task, how should you choose the smallest architecture that satisfies its evidence, risk, and operational requirements?
